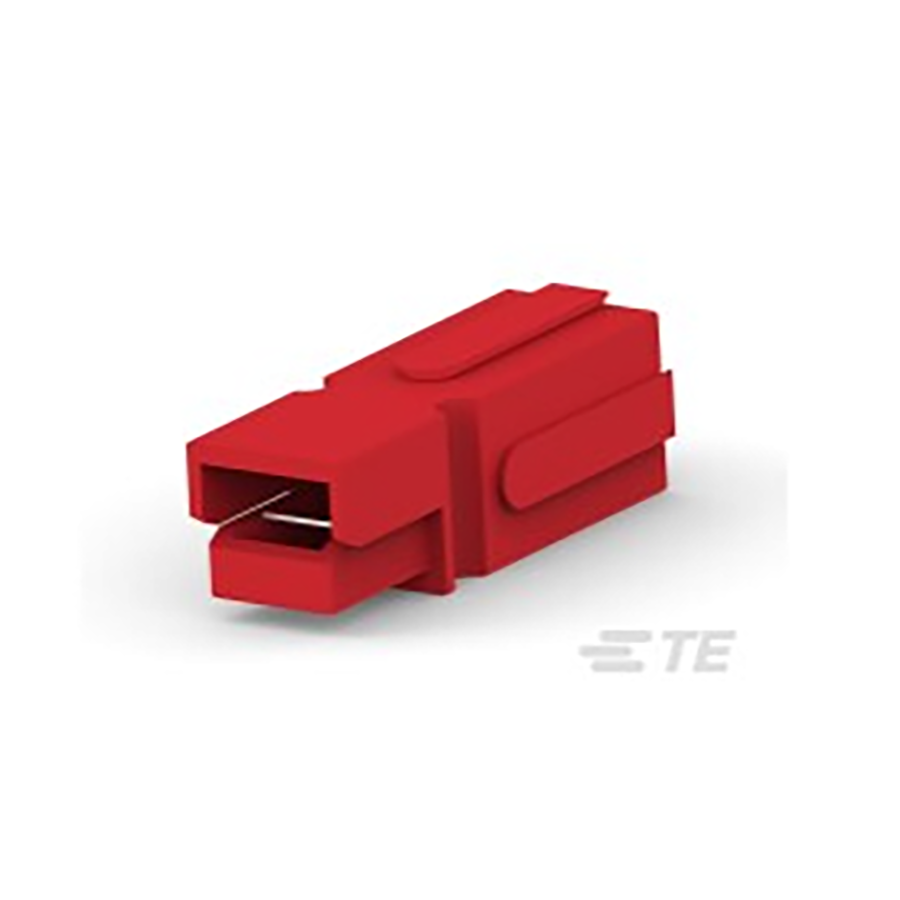

1445715-5
Manufacturer:
TE Connectivity
Mfr.Part #:
1445715-5
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Non-Gendered Number of Positions:1
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 48 mm |
| Width | 17.15 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 1 |
| Height | 17.15 mm |
| Packaging | Bulk |
| Voltage Rating | 24 V |
| Depth | 48 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper |
| Number of Terminals | 1 |
| Current Rating | 75 A |
| Max Current Rating | 75 A |
| Max Voltage Rating (DC) | 24 V |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Red |
| Gender | Receptacle |
| Number of Contacts | 1 |
| ELV | Compliant |
| Connector Type | Non-Gendered |
| Wire/Cable Gauge | 6 AWG |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Row Spacing | 0 mm |
| Insulation Material | PC |
| Housing Material | Polycarbonate |
| Wire/Cable Type | Discrete |
| Number of Ports | 1 |
| Fastening Type | Spring Retention |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Red |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 6
Distributors
pcbx
pcbxUnit Price$1.07549
Ext.Price$1.07549
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.07549 | $1.07549 |
| 10 | $0.90586 | $9.05860 |
| 25 | $0.84951 | $21.23775 |
| 50 | $0.79667 | $39.83350 |
| 100 | $0.74711 | $74.71100 |
| 300 | $0.70063 | $210.18900 |
| 500 | $0.63205 | $316.02500 |
